| 8缸船用主机 Marine main engine | |||||||
| 项目Items | 单位Unit | ||||||
| 系列Series | 8G26系列 | ||||||
| 型号Model | 8G26 | 8G26-2 | 8G26-4 | 8G26-6 | 8G26-8 | ||
| 功率Power | kW/Ps | 2664 | 2352 | 2060 | 1765 | 1470 | |
| 转速Speed | rpm | 750 | |||||
| 缸径Bore | mm | 260 | |||||
| 冲程Stroke | mm | 390 | |||||
| 活塞平均速度 Mean piston speed | m/s | 9.75 | |||||
| 平均有效压力 BMEP | MPa | 2.57 | 2.27 | 1.99 | 1.70 | 1.42 | |
| 燃油(气)消耗率Fuel consumption | 100%MCR | g/kWh | 183 | 184 | 185 | 185 | 186 |
| 85%MCR | 184 | 185 | 186 | 186 | 187 | ||
| 润滑油消耗率Lube oil consumption | g/kWh | 0.7 | |||||

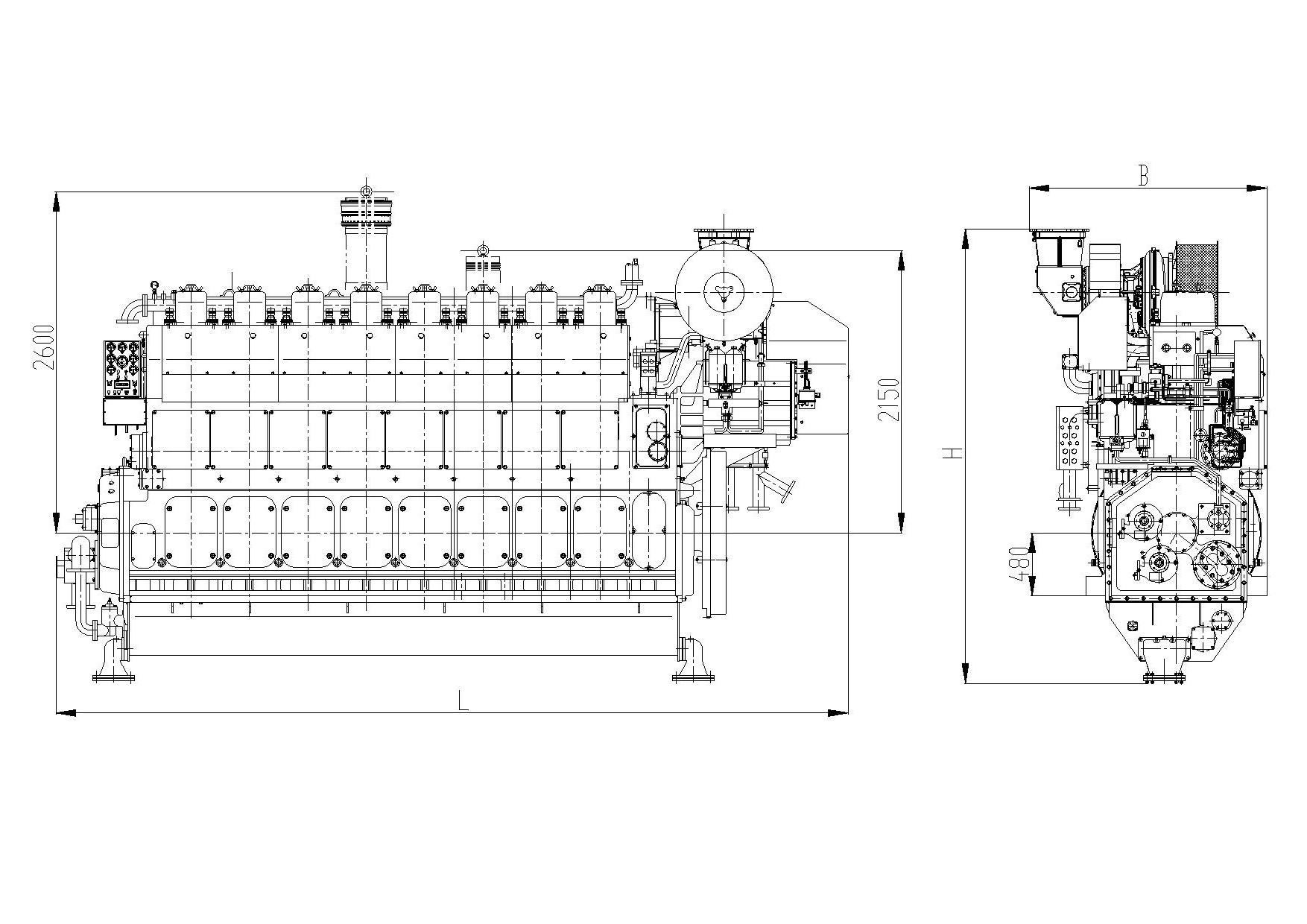

| 外形尺寸 Outline dimension （长×宽×高）(L×B×H) | mm | 6044×1810×3463 | |||||
| 重量 Weight | kg | 31000 | |||||
| 双主机安装最小中心距离 | mm | 2200 | |||||
| 证书 | CCS | ||||||
| 燃料类型Fuel type | 380cSt/50℃ HFO | ||||||
| 说明Explantions： | |||||||
| 1、各型号发动机的供货范围，按相应技术文件执行。 | |||||||
| The delivery scope for each model engines shall be performed as per the corresponding technical files. | |||||||
| 2、所有机型均可满足IMO TireⅡ的要求。 | |||||||
| All the model engines can meet IMO Tire Ⅱ requirements. | |||||||
